Fixed speed Screw compressor

Rollair 75-125

The Rollair 75-125 range has been designed for industries that need to be both reliable and efficient. It features state-of-the-art energy-saving technology, so operational costs are reduced without sacrificing the day-to-day performance of the compressed air system. It is also easy to set up, which increases productivity with no downtime. Explore this range to see how it can help your operations boost their lasting value and sustainability.

EFFICIENT

3% vs Previous Generation

Achieving up to 3% lower power consumption, the Rollair 75-125 range offers substantial energy savings, making it a smart choice for cost-effective operations.

practicality

Easy Maintenance

Its design prioritizes accessibility, with easily removable panels and quick access to components, reducing maintenance time and keeping costs to a minimum.

high reliability

46°C

Engineered to perform reliably even in ambient temperatures reaching 46°C, this range is built to excel in the toughest industrial environments.

PRODUCT OVERVIEW

The range to Redefine your Performance

The Rollair 75-125 range strikes the perfect balance between durability and efficiency, making it a robust choice for demanding applications. With expertly engineered compression elements working in tandem with advanced IE4 motors, it achieves up to 4% higher Free Air Delivery and reduces energy consumption by up to 3%, offering both power and economy in one package.



On the other hand, this range can operate reliably in ambient temperatures reaching 46°C and its user-centred design ensures that key components are easily accessible. So routine maintenance is both straightforward and efficient. In a few words, whether it is to control all kind of costs or sustain high productivity levels, this series offers a solution you can truly depend on.

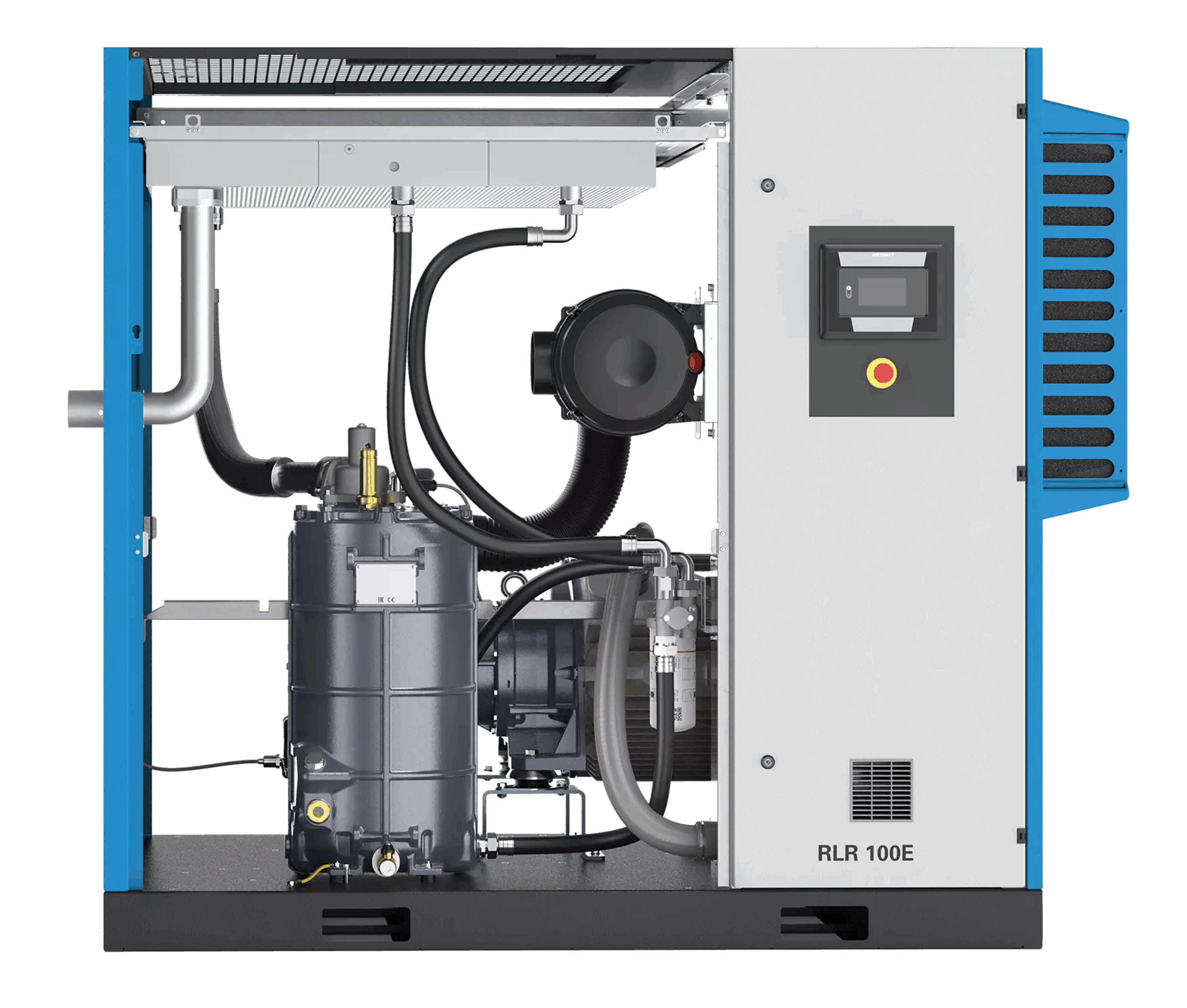

Optimised Screw Compression Element

The Rollair 75-125 range sets a new benchmark for efficiency, thanks to its refined screw compression element, employed to minimise internal pressure losses. This enhancement translates into an huge increase in Free Air Delivery by up to 4%, enabling your system to perform with greater effectiveness.

These units are characterised by their ability to keep energy consumption under control while controlling heat build-up. This balanced approach not only ensures consistent performance but offers also substantial savings.

#

FULL OF FEATURES

Screw Compression Element and IE4 Motors

Innovative Screw Compression Element – Engineered in-house to reduce internal pressure drops, this advanced compression element boosts Free Air Delivery by as much as 4%, driving greater efficiency throughout your operations.
Efficient IE4 Motors – The IE4 motors are designed to deliver outstanding energy efficiency while ensuring consistent and reliable output, even in the most demanding industries.



Why Choose the Rollair 75-125?

The Rollair 75-125 range has been built to thrive in industrial environments, delivering dependable performance and long-lasting durability, even when conditions are far from ideal. At its heart lies advanced screw compression technology paired with tools such as the intuitive Airlogic²T controller, which gives you a clear view of your system’s performance and the ability to make precise adjustments with ease.

What makes this range truly distinctive is its ability to combine impressive energy savings with reliable output. By lowering costs without compromising productivity, this series proves itself an asset for any business aiming to work smarter and more efficiently.

#

MORE FEATURES

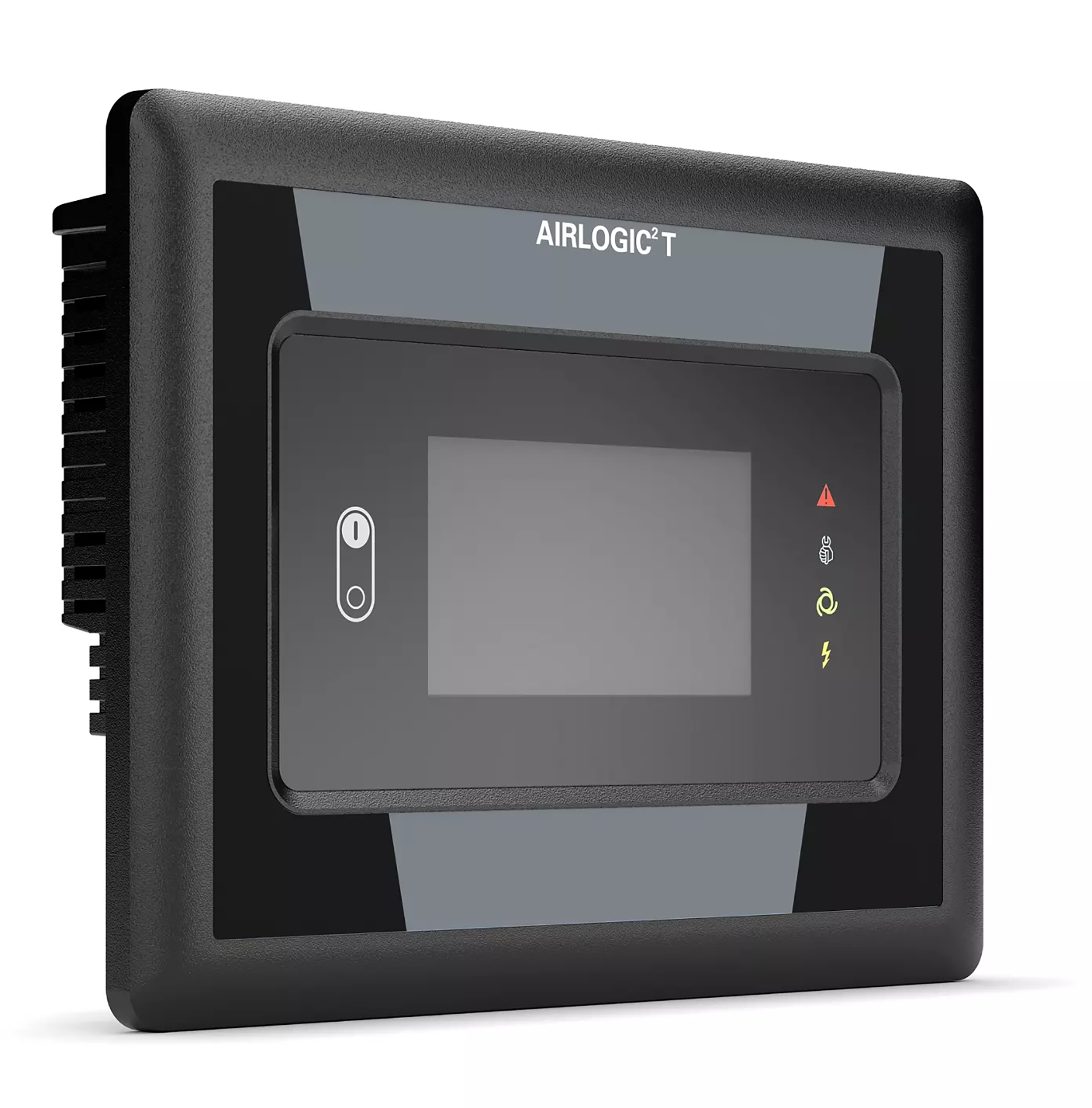

Airlogic2T Touchscreen Controller and Durable Cooling System

Airlogic²T Control System – You can now experience seamless control with the Airlogic²T system : Benefit from real-time performance insights and remote monitoring. This intuitive setup allows you to fine-tune your operations, minimise downtime as well as maximise efficiency effortlessly.

Durable Cooling System – Optimised for extreme conditions, the cooling system (equipped with high-capacity coolers and efficient fans) ensures steady performance even in ambient temperatures up to 46°C.

#
#

The latest technology in air compressors

  • Precision-Engineered Screw Compression Element
    Designed in-house to optimize airflow, this advanced compression element minimizes internal pressure losses, resulting in up to 4% more Free Air Delivery.
  • IE4 High-Efficiency Motors
    These premium motors are engineered to significantly cut energy usage while maintaining steady and reliable performance.
  • Airlogic²T Control System
    Gain full visibility over your compressor’s performance with real-time data and remote monitoring, allowing for greater efficiency and control.
  • Advanced Cooling System
    Built to perform in temperatures reaching up to 46°C, the cooling system ensures consistent operation even in harsh environments.
  • Maintenance-Friendly Design
    With easily accessible panels, servicing is quick and straightforward, helping to reduce both downtime and maintenance expenses.
  • Integrated Air Dryers
    These dryers effectively remove moisture from the compressed air, therefore enhancing air quality and minimizing the risk of corrosion or damage to your equipment.

  • Heat Recovery System
    This system captures up to 75% of the heat produced during compression, repurposing it for water heating or other processes. Consequently, you will be able to turn waste into savings.
  • Smart ECO Controllers (ECO2i, ECO4i, ECO6i)
    These controllers intelligently optimise the management of multiple compressors, lowering system pressure and trimming energy costs.
  • Automated Water Separator Drain
    Condensate is automatically discharged, ensuring cleaner compressed air with minimal manual upkeep.
  • Cold Climate Protection
    It keeps oil temperatures stable, preventing condensation and freezing in low-temperature conditions, ensuring smooth and uninterrupted performance.
  • Preheating System for Oil
    This system optimises operation in cold environments by reducing startup times and minimizing wear, enhancing equipment longevity.

Technical data

installed POWER

90

The Rollair 75-125 range delivers between 55 to 90 kW of motor power, ensuring robust performance for heavy-duty tasks.

capacity

1020

This allows to get optimised output and a boost in efficiency.

PRESSURE

13

Capable of reaching pressures up to 13 bar, the series easily adapts to diverse industrial needs.

Technical data

ModelMotor Power (kW)Max. Pressure (bar)Capacity (m³/h)*Noise Level (dBa)
Rollair 75551362671/70
Rollair 100E751380873/72
Rollair 100751390171/72
Rollair 1259013102072/71/73
*Capacity at 7.5 bar
