Variable speed Screw compressor

Rollair 60-125 VPM

Are you explicitly seeking an energy-efficient and reliable compressed air solution? Do not look any further! The Rollair 60-125 VPM oil-injected screw compressor delivers consistent performance while minimising your operational costs. How? Explore below to know more.

EFFICIENT

45% Energy Savings

Energy costs are reduced by up to 45% thanks to the intelligent variable speed control and high-efficiency IE4 motor.

Less maintenance

Extended Service Intervals

Extended service intervals enable to minimise downtime, ensuring smoother operations over longer periods.

FREE AIR DELIVERY

+4%

Optimised air delivery and advanced rotor design offer 4% more free air, enhancing overall system performance.

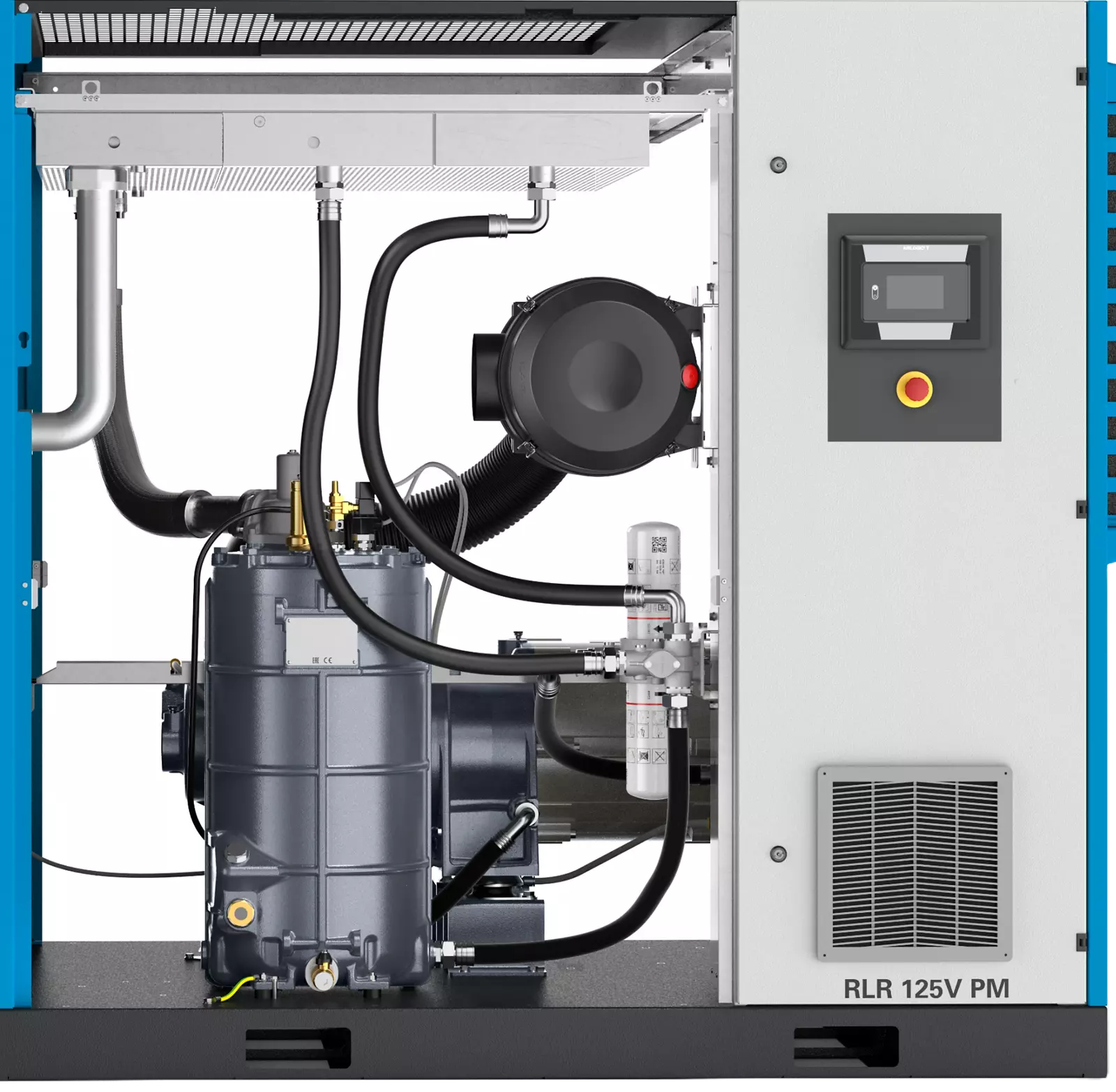

PRODUCT OVERVIEW

Performance and Eco-efficiency : The two watchwords

Our Rollair 60-125 VPM is a versatile oil-injected screw compressor that we’ve developed in order to respond to the diverse needs of different industries. Indeed, fitted with an advanced IE4 motor and variable speed technology, it can reduce energy consumption by up to 45%, all while ensuring consistent and reliable output. In addition to this, the redesigned air end improves the FAD (Free Air Delivery), which will strengthen your productivity and will cut your operational costs.



Longevity will no longer be a concern. These units demand minimal maintenance, with extended service intervals. So, this translates to fewer interruptions and ensures sustained performance.

Advanced IPM Technology

This kind of technology aims to adjust the air supply to meet the precise demands of your system. With this range, be sure therefore, to get important energy savings (of up to 45%!).

In addition, the IE4 motor works seamlessly with a custom-engineered screw element. Together, these components enhance overall performance since they ensure a sustainable and cost-effective solution for those looking to optimise their compressed air systems significantly.

#

FULL OF FEATURES

Enhanced Screw Element and IP66 iPM motor

Enhanced Screw Element – This unit features an advanced screw element designed to boost Free Air Delivery (FAD) by 4%. This results in higher output with less energy consumption.

Durable IP66 iPM Motor – Equipped with an IP66-rated Interior Permanent Magnet (iPM) motor, this compressor has been developed to withstand dust and water exposure. This guarantees high performance in all environments, however diverse.



Why Choose the Rollair 60-125 VPM?

This range has what it takes to make all the difference. With susbtantial energy savings, longer service intervals and seamless real-time control, this model cuts costs while staying high-performance.

Therefore, the Rollair 60-125 VPM is the solution to get top-tier productivity while reducing your environmental footprint.

#

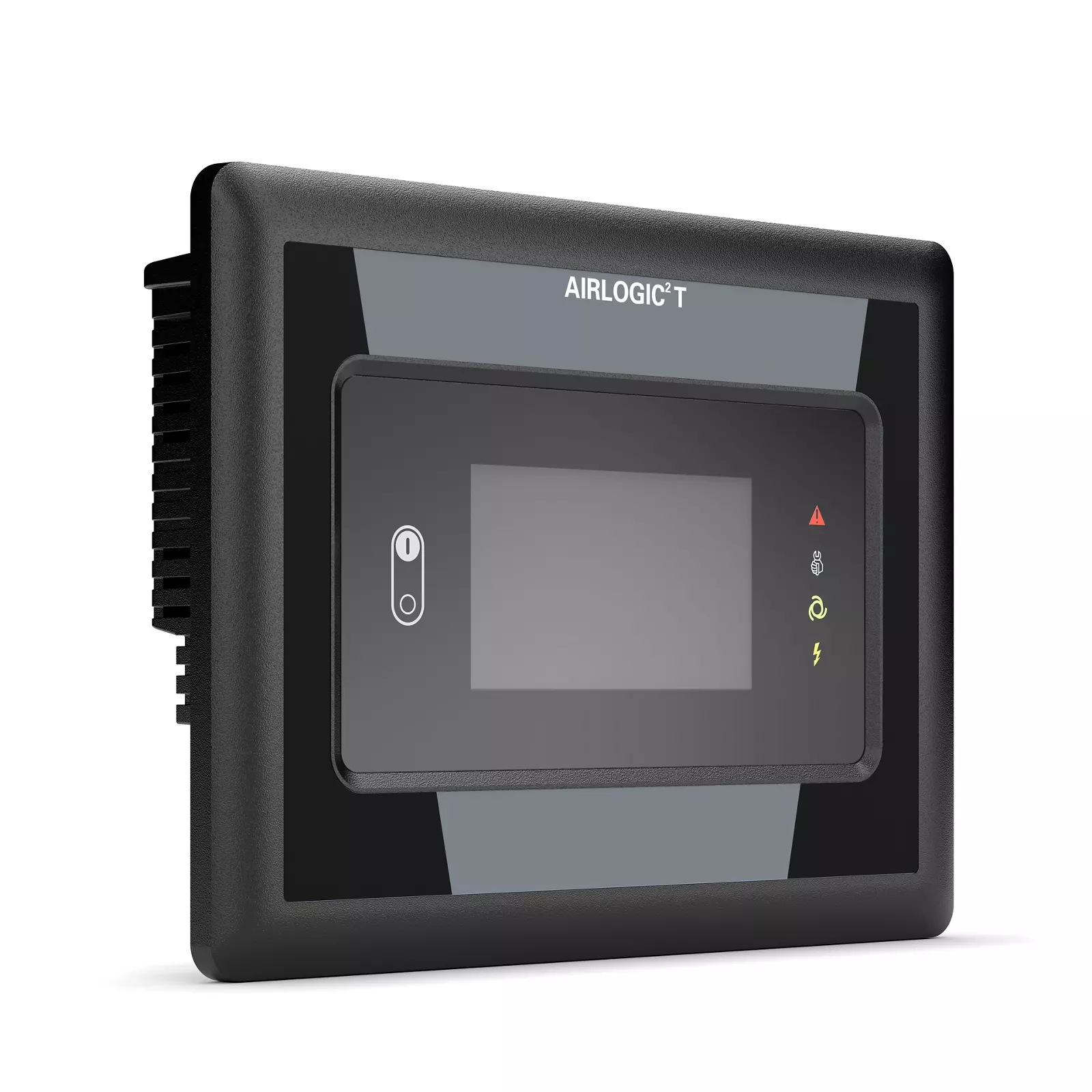

Airlogic2T Controller and Dual Cooling System

User-Friendly Airlogic²T Interface – Managing your system is simple now with the Airlogic²T touchscreen. From real-time monitoring to precise adjustments, it puts control on hand.
Dual-Cooling System – With separate oil and air coolers, this dual-cooling setup keeps operating temperatures under control. It is a smart design that ensures long-term reliability and optimal efficiency.

#
#

The latest technology in air compressors

  • IE4 Ultra-Efficient Motor
    The Rollair 60-125 VPM’s IE4 motor ensures top performance with minimal energy use, making operations cost-effective and reliable.
  • Next-Generation Screw Element
    The advanced screw element improves FAD by up to 4% and rotor profile, boosting efficiency and productivity while reducing pressure losses.
  • Precision Variable Speed Drive
    The Imperium drive adjusts airflow to match demand, saving up to 45% energy.
  • Airlogic²T Touchscreen Control
    With the Airlogic²T touchscreen, you’ll be able to manage your performance and energy efficiency easily, thanks to its intuitive interface.
  • Proven Inlet Valve
    The inlet valve regulates airflow efficiently, reducing maintenance and lowering ownership costs over time.
  • Silencing Baffle
    It guarantees reduced noise levels which makes it even more important when oprating the compressor close to the point-of-use.
  • Integrated Dryers
    The whole industrial range is available with integrated dryers. You will find also Internal Water Separator integrated in air cooler.

  • Integrated Water Separation Drains
    Ensures efficient condensate removal.
  • Energy Recovery System
    Recovering up to 75% of the heat generated during compression, this system repurposes the energy for industrial water heating.
  • Tropical Thermostatic Valve
    Specifically designed to withstand hot and humid environments, this valve ensures your compressor operates smoothly by maintaining ideal temperature levels, regardless of external conditions.
  • Freeze Protection (Oil Preheater)
    The preheater ensures that the oil temperature remains above a critical threshold, preventing condensation and maintaining smooth functionality even in freezing conditions.
  • Centralised Controller: ECOi Multi-Compressors Control (ECO2i, ECO4i, ECO6i)
    Manage multiple compressors and system parameters effortlessly with this advanced controller, which maximises efficiency, cuts energy use and streamlines system operation.
  • Electronic Condensate Drain
    Expels condensate from the system, ensuring continuous and reliable air flow and preventing any build-up that could affect compressor performance.

Technical data

installed POWER

90

The Rollair 60-125 VPM offers a power range between 45 kW and 90 kW, providing flexible and efficient energy use for a variety of industrial applications

capacity

1037

With an airflow capacity reaching 1037 m³/h, it ensures a steady supply of compressed air to support increased productivity.

PRESSURE

13

Able to operate at pressures of up to 13 bar, the Rollair 60-125 VPM is well-suited to meet the demands of different environments



Technical data

ModelMotor Power (kW)Max. Pressure (bar)Capacity (m³/h)*Noise Level (dBa)
Rollair 60 V PM451354570
Rollair 75 V PM551365770
Rollair 100 EV PM751379172
Rollair 100 V PM751393671
Rollair 125 V PM9013103772
*Capacity at 7 bar
